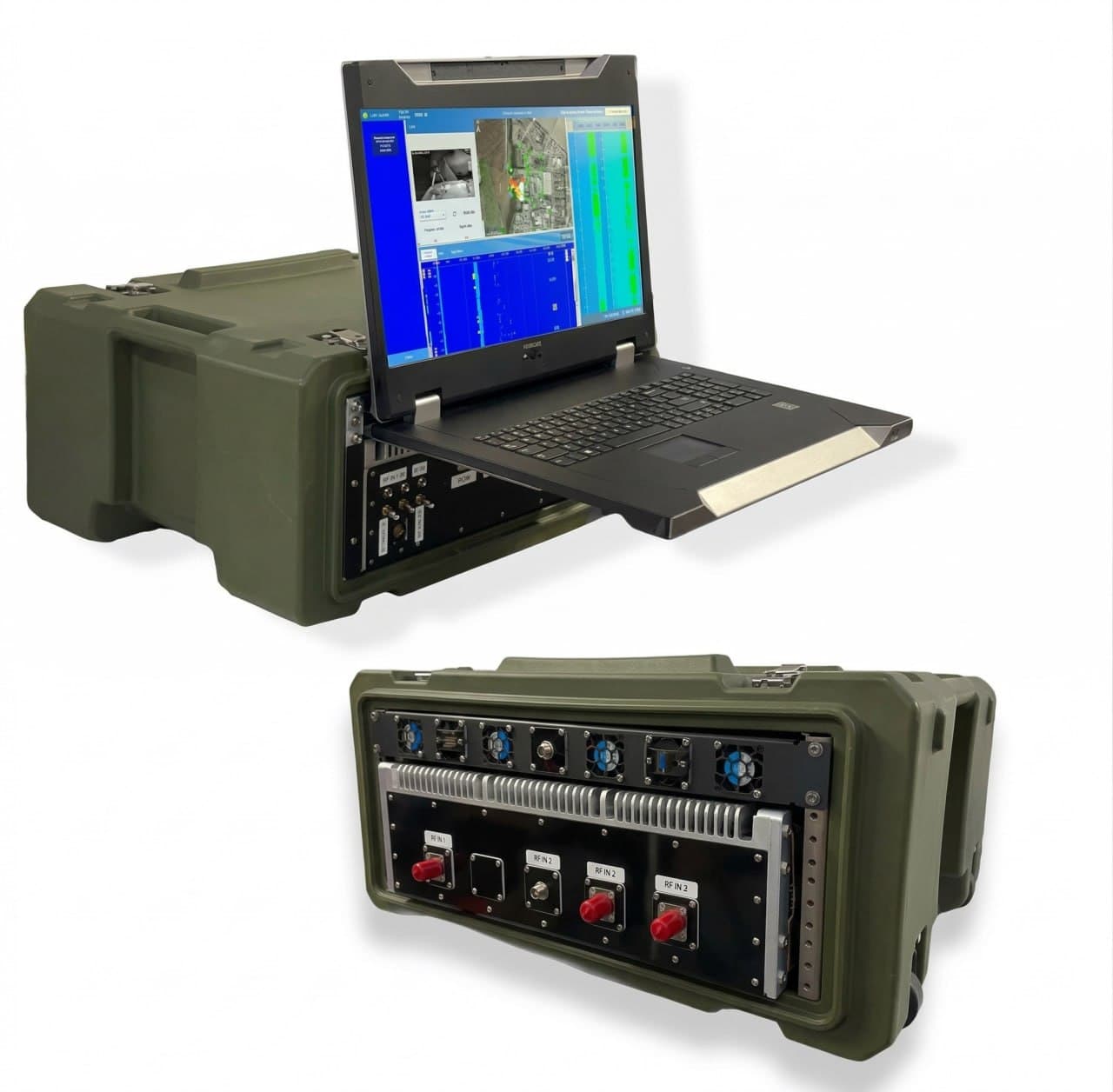

SkyGuard MIL

SkyGuard MIL

SkyGuard MIL is a rack-mounted military-grade system designed for detection and electronic countermeasures against unmanned aerial systems (UAS). It provides rapid autonomous protection for forward operating bases, borders, checkpoints, and critical infrastructure.

Technical Specifications

Frequency Range70 MHz – 11,000 MHz
Detection RangeUp to 3 miles (99.99% accuracy)
Jamming RangeUp to 1,500 feet
RF Output Power300 W
Form Factor4U Rack-mountable, IP65 rated
Power24 V DC / UPS backup / 90–230 V AC

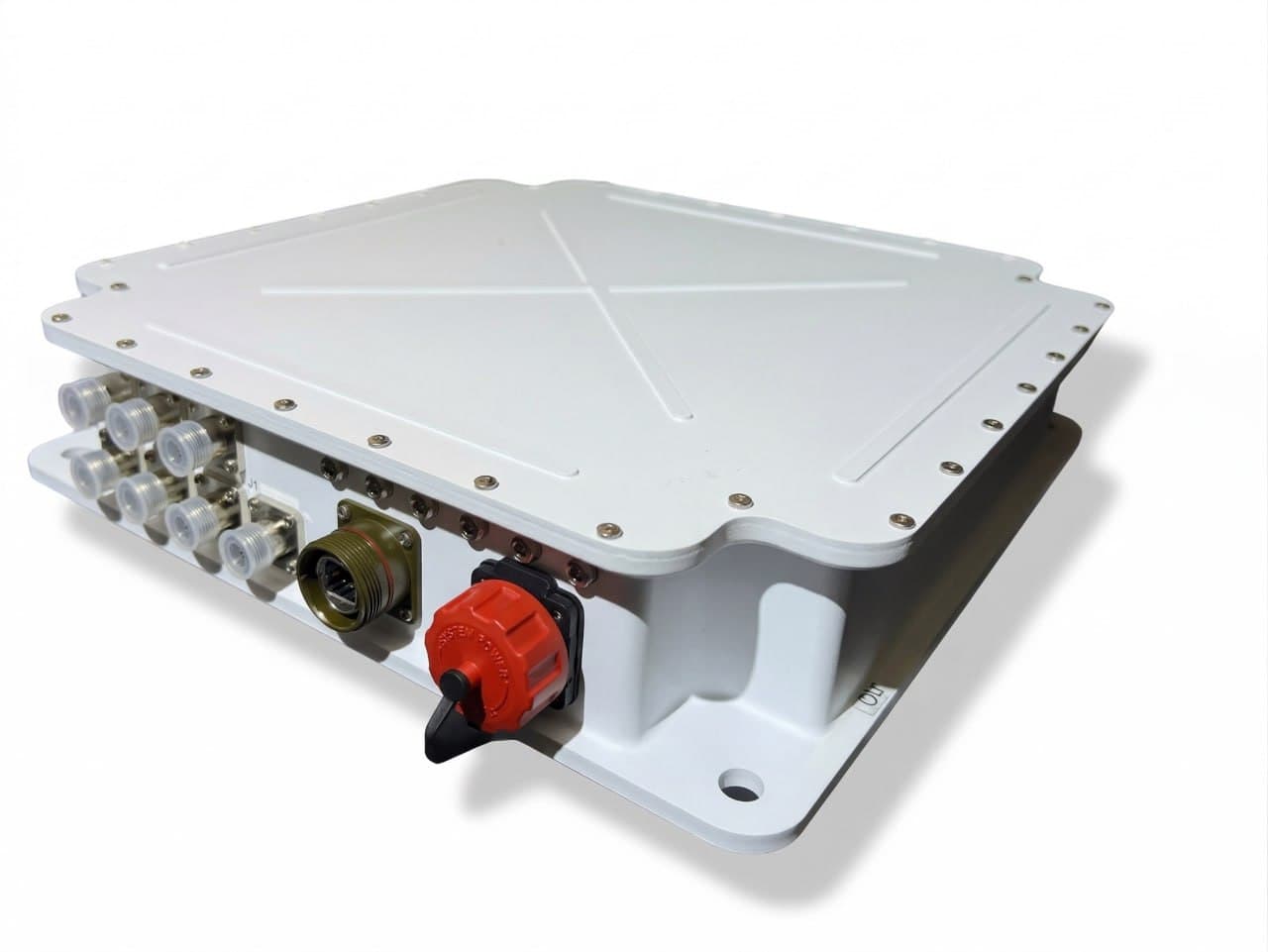

SkyWatch Sentinel

SkyWatch Sentinel

SkyWatch Sentinel is a fixed-installation, passive RF detection and electronic countermeasure system designed for continuous 24/7 protection of high-value stationary sites. Operating exclusively with passive antennas, the system emits no signals, making it completely undetectable to enemy electronic reconnaissance. It autonomously monitors airspace up to 3 miles, detecting, classifying, and neutralizing UAS threats without operator intervention while preserving full operational integrity of the site's own communications and SCADA systems.

Technical Specifications

Frequency Range70 MHz – 6,000 MHz (11,000 MHz optional)
Detection RangeUp to 3 miles (99.99% accuracy)
Jamming Range600 m (omni) / up to 2 km (directional)
RF Output Power600 W
Form FactorFixed-mount, IP65 rated
Power Supply90–230 V AC with UPS backup

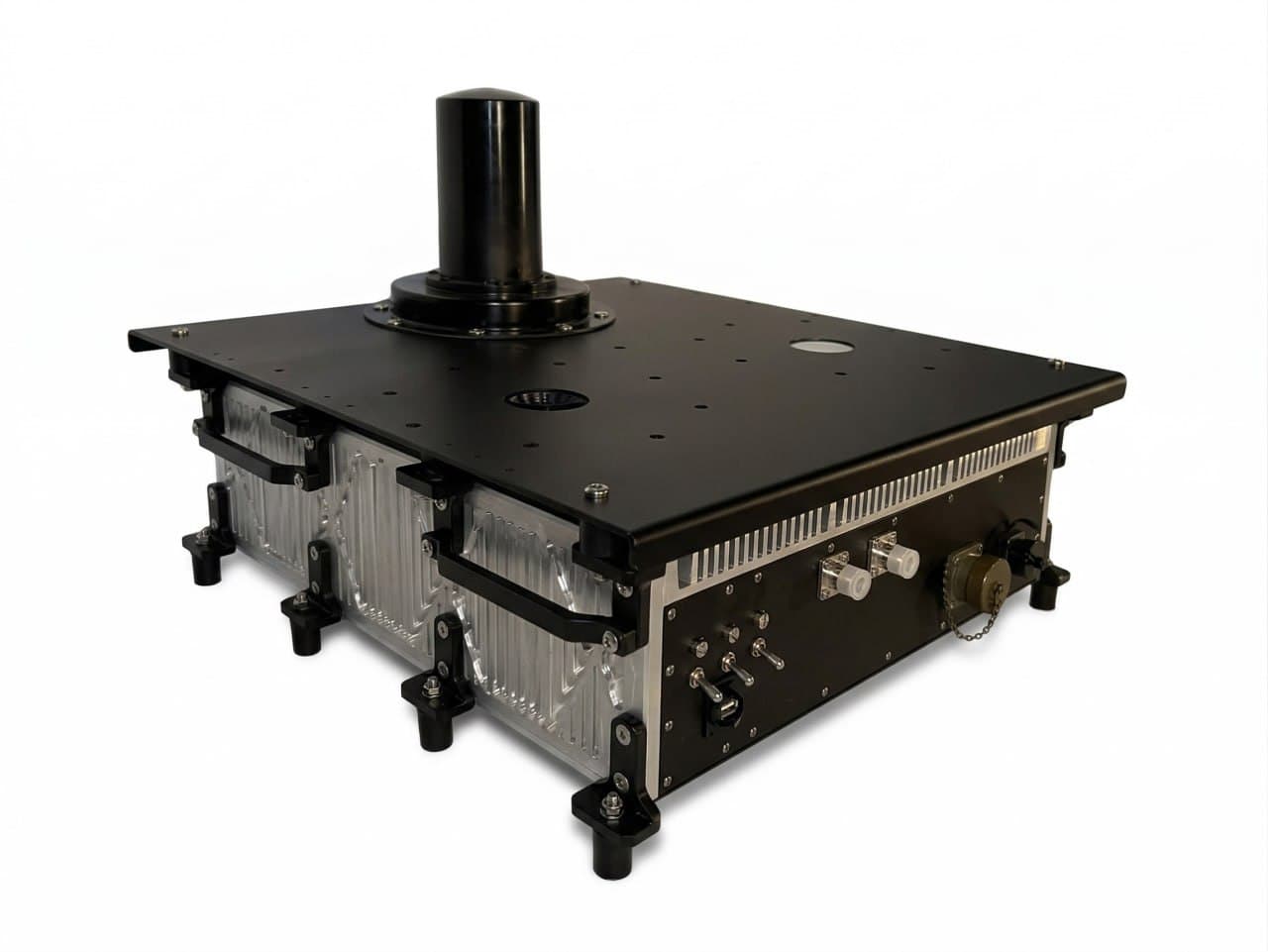

SkyShield Vehicle

SkyShield Vehicle

SkyShield Vehicle is an autonomous reactive jamming and passive RF detection system designed for vehicle-mounted deployment on any military or support vehicle. The system requires zero crew intervention — it detects, classifies, and neutralizes UAS threats automatically within seconds, allowing the crew to stay focused on the mission.

Technical Specifications

Frequency Band400 MHz – 6,000 MHz
Detection RangeUp to 1 mile (99.99% accuracy)
Jamming RangeUp to 1,500 feet
RF Output Power300 W
Form Factor19″ × 19″ × 7″ + 12″ antenna / 49 lbs
Power Supply12–36 V DC (vehicle power)
Antenna SystemTwo omni-directional antennas

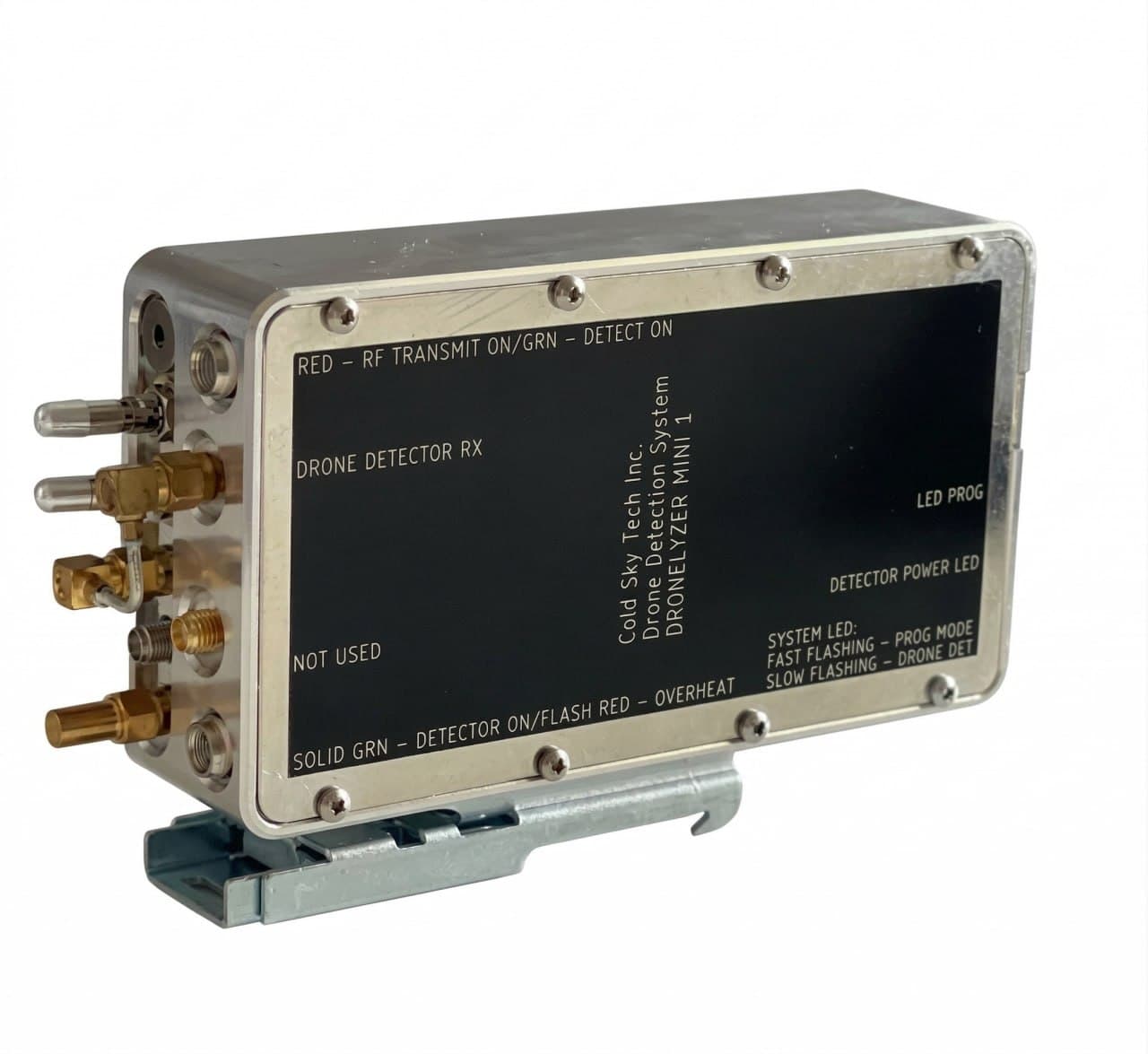

SkyWatch Micro

SkyWatch Micro

SkyWatch Micro is a compact, portable RF detection unit that functions both as a standalone UAS sensor and as an intelligent upgrade module for any existing barrage jammer. Weighing only 2 pounds, it transforms a constantly transmitting jammer into a smart reactive system — activating countermeasures only when a drone is detected, while preserving friendly communications.

Technical Specifications

Frequency Band400 MHz – 6,000 MHz
Detection RangeUp to 1 mile (99.99% accuracy)
Scan Rate2.2 seconds
Setup TimeApproximately 5 seconds
Form Factor6″ × 3.5″ × 1.75″ / 2 lbs
Power Consumption12 W
Power Supply18–30 V DC

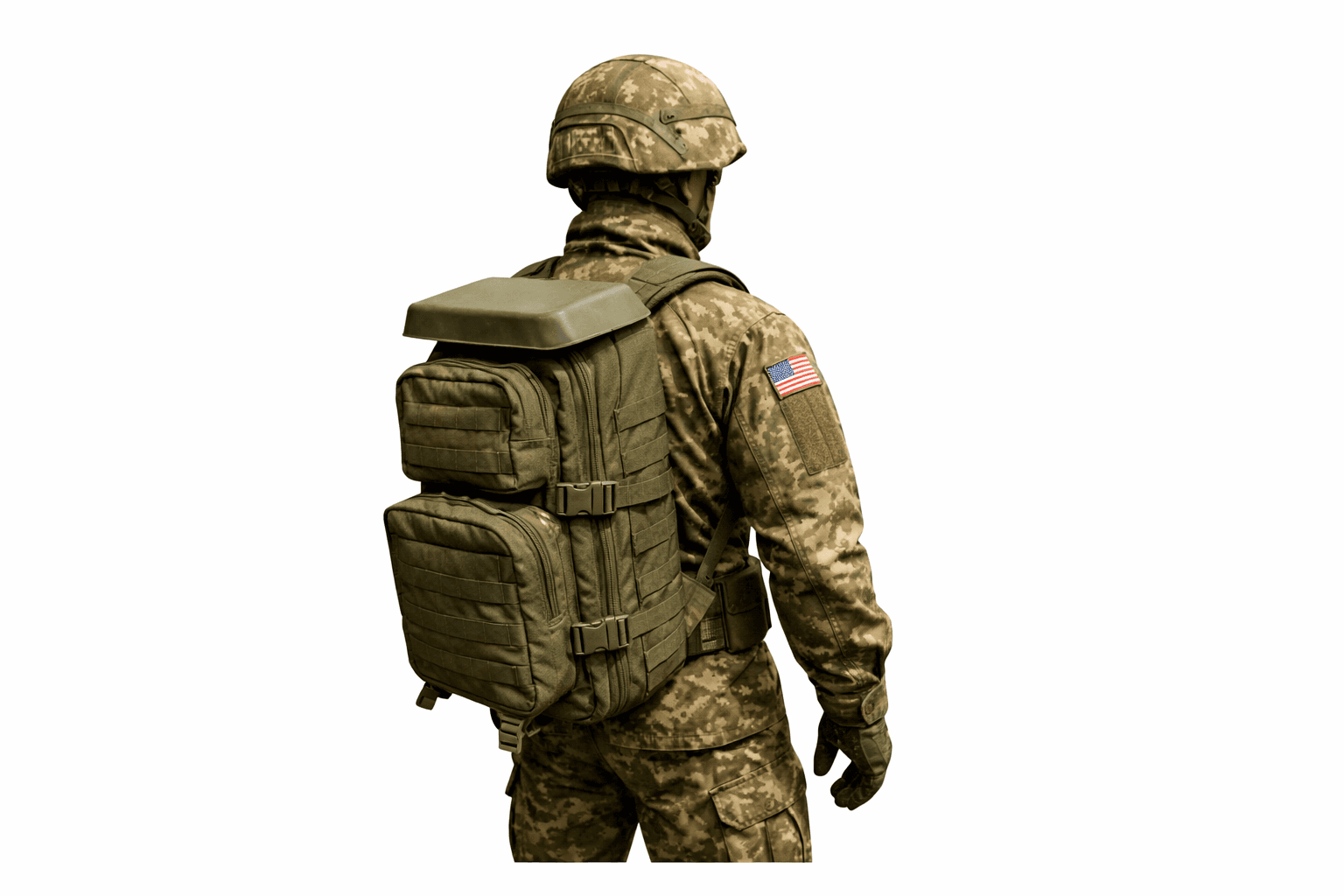

Blackwave-M

Blackwave-M

Backpack-mounted electronic warfare system for mobile EW operations. Man-portable solution combining powerful jamming capabilities with tactical mobility in field conditions.

Technical Specifications

TypeEW Backpack System
Form factorBackpack
Jamming frequenciesTBD
Effective rangeTBD
Power sourceBattery
Operating timeTBD
WeightTBD

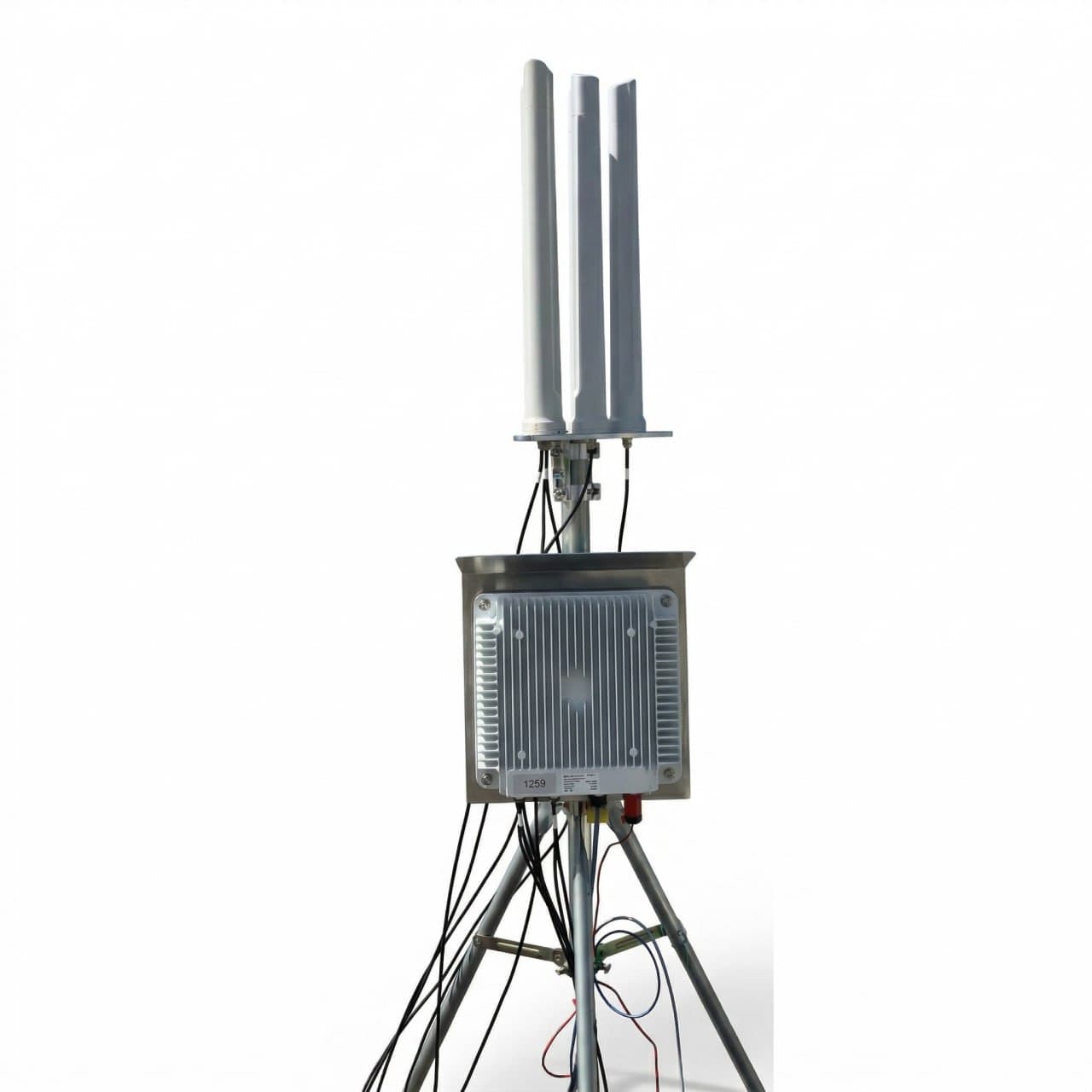

SkyTrace DF-210

SkyTrace DF-210

SkyTrace DF-210 is a Software Defined Radio-based RF direction finder designed to determine the precise direction of arrival of any radio frequency signal. While detection systems identify and neutralize individual drones, SkyTrace DF-210 locates the operator behind the threat, turning defensive actions into actionable intelligence.

Technical Specifications

Frequency Range120 MHz – 5,800 MHz
Angular AccuracyBetter than ±2°
Visibility Region0° – 359° full coverage
Antenna Configuration2 + 2 + 2 inputs
Angle Calculation SpeedUp to 61 bearings per second
Form Factor15″ × 15″ × 3.5″ / 16 lbs, IP65 rated
Power Consumption45 W
Internal BatteryUp to 30 minutes

Need a Custom Configuration?

Our team can help you select the optimal electronic warfare solution for your specific operational requirements.
