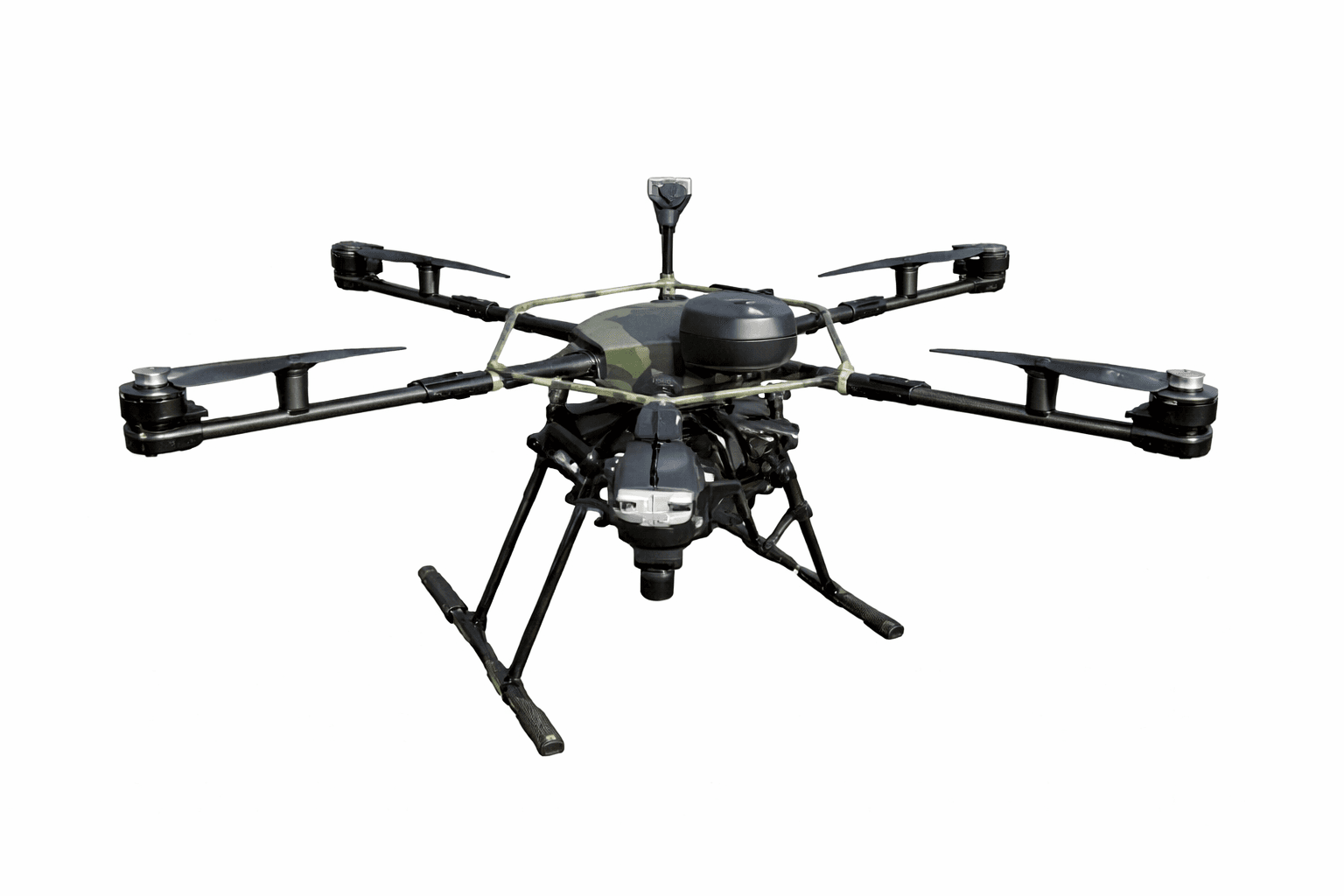

Vortex-X30

Vortex-X30

Strike multicopter bomber type, designed for tactical missions: delivery and dropping of munitions in any weather conditions. Ensures stable operation in wind, obstacles and difficult terrain.

EW ProtectionLong RangeMunition DropMultiple Camera TypesMulti-channel Communication

Technical Specifications

Weight (empty)34 kg
Dimensions1950 × 1950 × 700 mm
Payload capacityup to 20 kg
Max takeoff weight64 kg
Flight time30-55 min
Control rangeup to 20 km
Max speed16 m/s
Max altitude2000 m
Wind resistanceClass 6-7 (up to 10 m/s)
Vortex-X17

Vortex-X17

Designed for reconnaissance operations and precision strikes through accurate munition drops. Features UA-Pilot optical system for position hold up to 1000m and accurate drops even without GNSS.

ReconnaissanceMunition DropMultiple Camera Types

Technical Specifications

Payload capacityup to 2 kg
Flight timeup to 65 min (no payload)
Optimal strike radius~10 km
Weight (no battery)~2.9 kg
Dimensions242 × 242 mm
Communication2.4/5.5 GHz, up to 20 km
Video latency~170 ms
Battery6S 30000 mAh

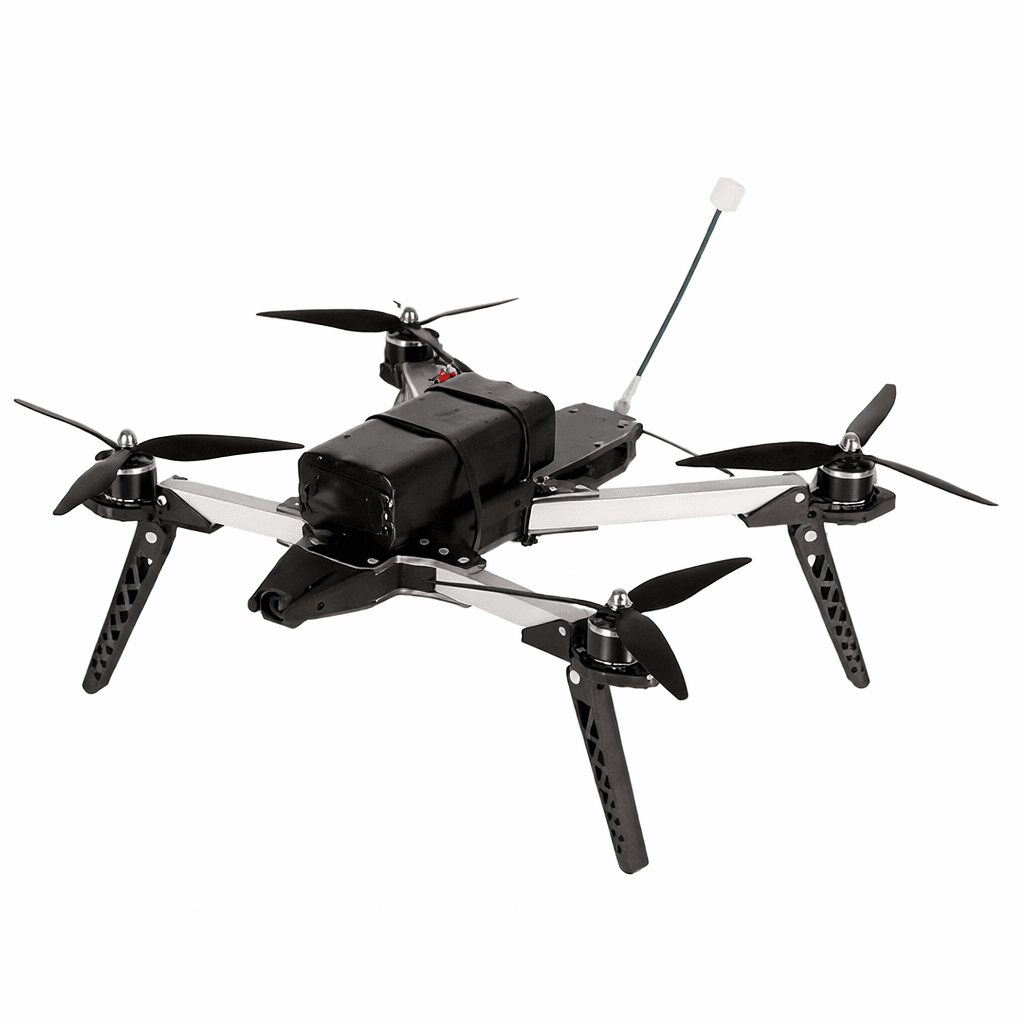

Lancer-X8

Lancer-X8

Compact single-use strike UAV with 8-inch propellers. Carbon/aluminum construction for durability and lightweight performance. Rapid deployment capability.

Single-useRapid DeploymentHigh Speed

Technical Specifications

Size8 inches
Frame materialCarbon / Aluminum
Payload capacity2 kg
Tactical radius15 km
Flight time (no payload)24 min
Flight time (with payload)12 min
Speed (no payload)140 km/h
Speed (with payload)110 km/h
UAVs per kit100
Deployment time10 min

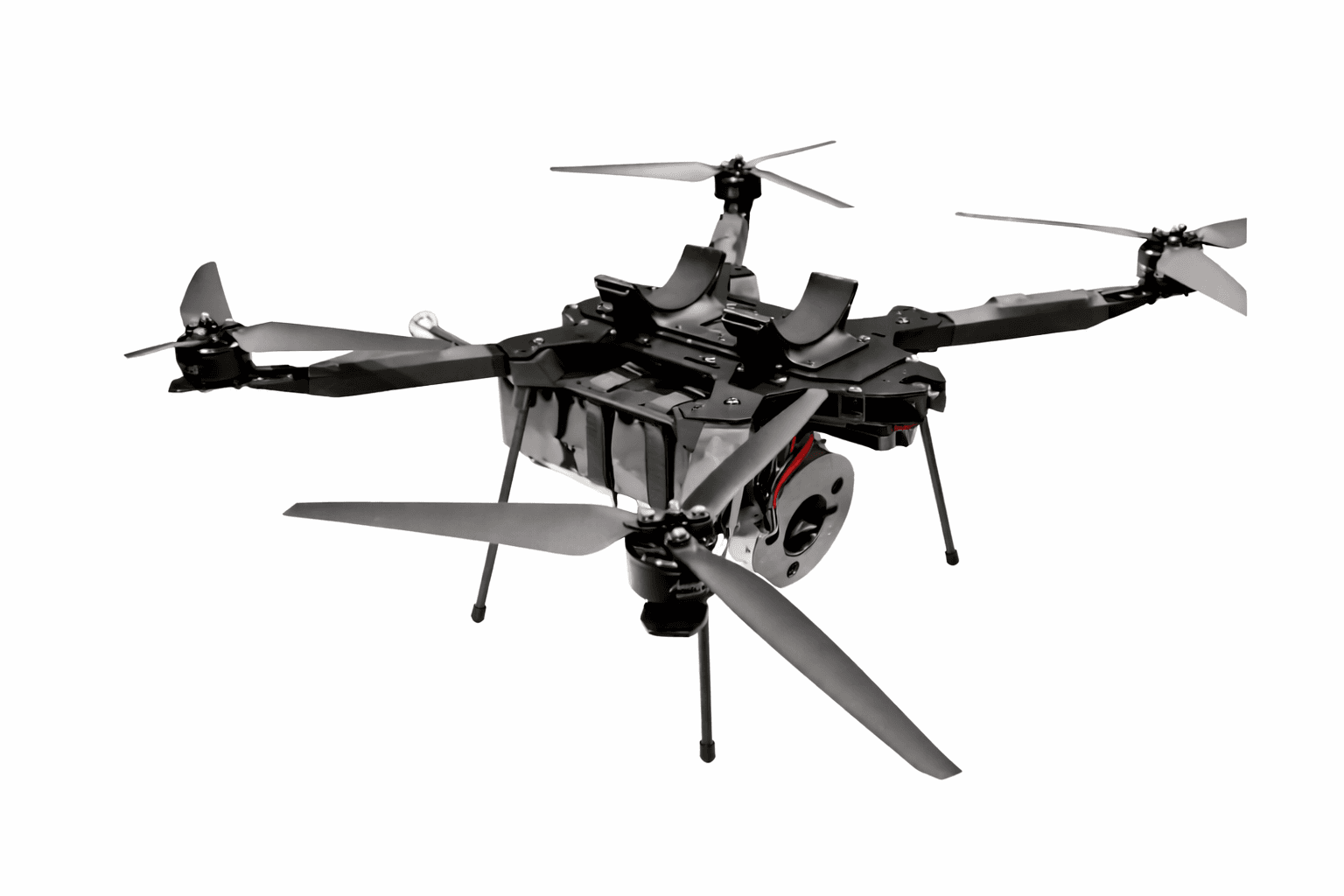

Lancer-X10

Lancer-X10

Medium-sized single-use strike UAV with 10-inch propellers. Balanced performance between payload capacity and flight characteristics. Carbon/aluminum construction.

Single-useRapid DeploymentBalanced Performance

Technical Specifications

Size10 inches
Frame materialCarbon / Aluminum
Payload capacity2.5 kg
Tactical radius18 km
Flight time (no payload)24 min
Flight time (with payload)15 min
Speed (no payload)120 km/h
Speed (with payload)100 km/h
UAVs per kit75
Deployment time10 min

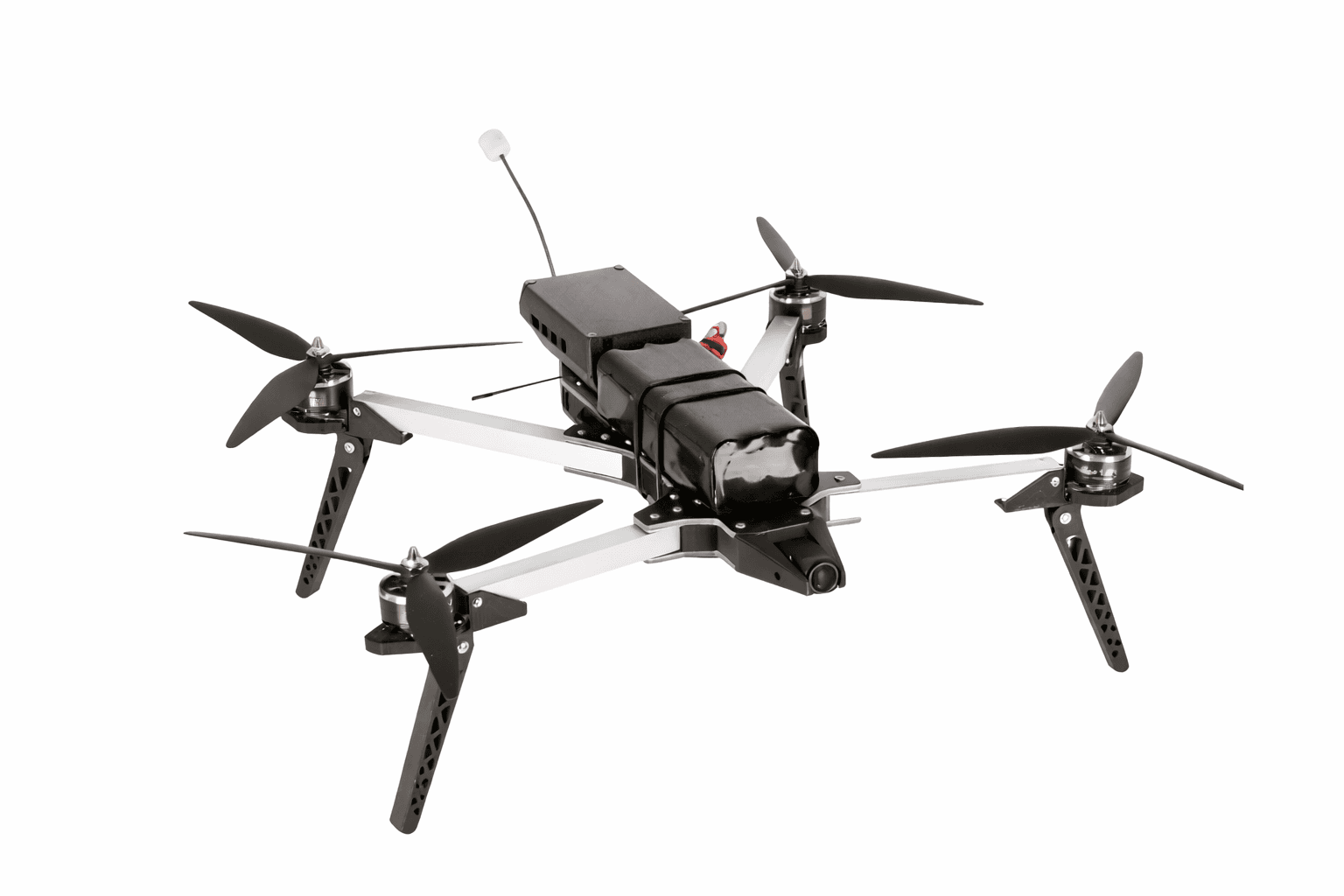

Lancer-X13

Lancer-X13

Single-use strike UAV with 13-inch propellers. Increased payload capacity and tactical radius compared to smaller models. Carbon/aluminum construction.

Single-useRapid DeploymentExtended Range

Technical Specifications

Size13 inches
Frame materialCarbon / Aluminum
Payload capacity3.2 kg
Tactical radius20 km
Flight time (no payload)24 min
Flight time (with payload)20 min
Speed (no payload)55 km/h
Speed (with payload)60 km/h
UAVs per kit50
Deployment time10 min

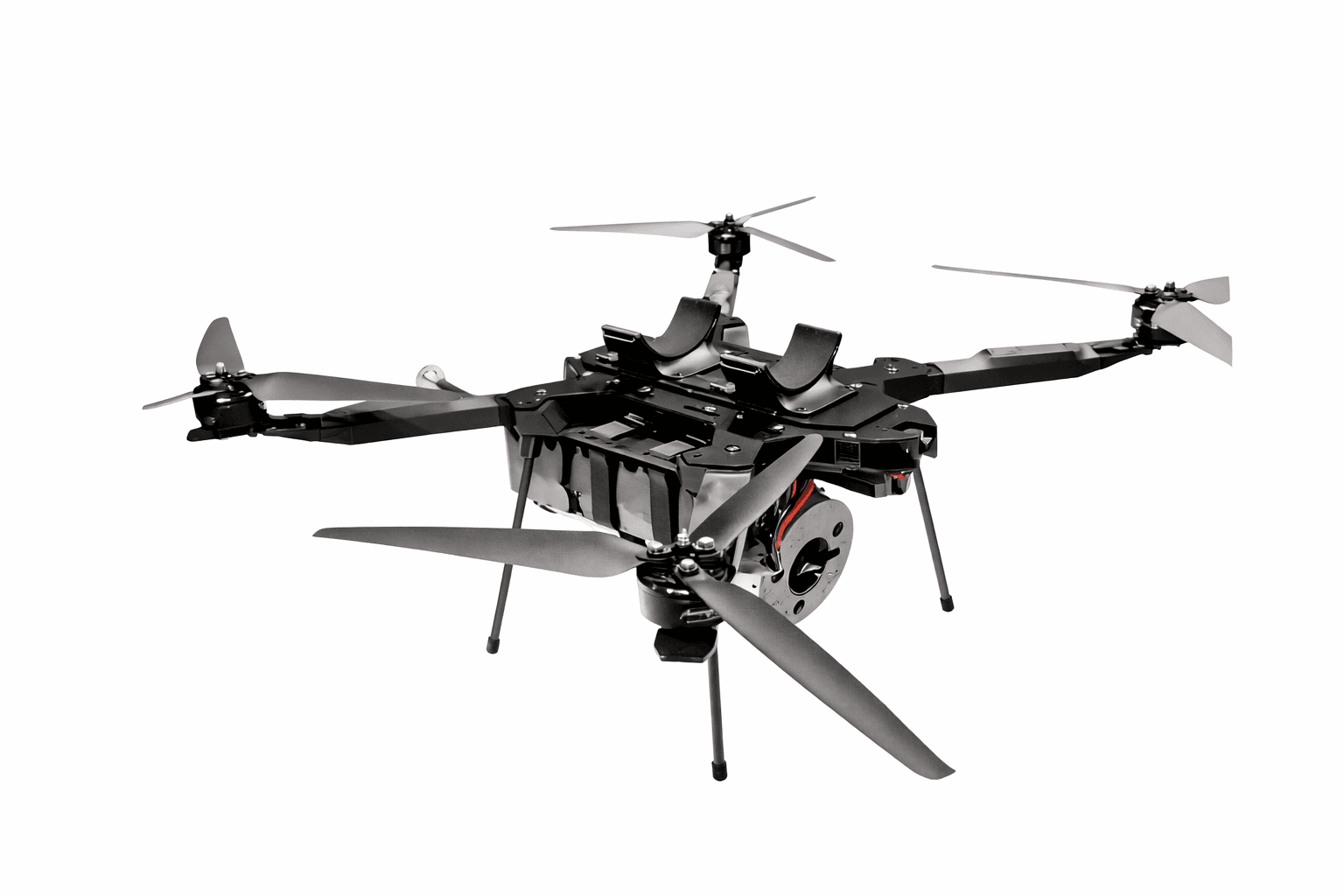

Lancer-X13 Optic

Lancer-X13 Optic

Enhanced single-use strike UAV with 13-inch propellers and optical guidance system. Increased payload capacity and tactical radius for extended operations.

Single-useOptical GuidanceExtended Range

Technical Specifications

Size13 inches
Frame materialCarbon / Aluminum
Payload capacity3.2 kg
Tactical radius20 km
Flight time (no payload)24 min
Flight time (with payload)20 min
Speed (no payload)55 km/h
Speed (with payload)60 km/h
UAVs per kit50
Deployment time10 min

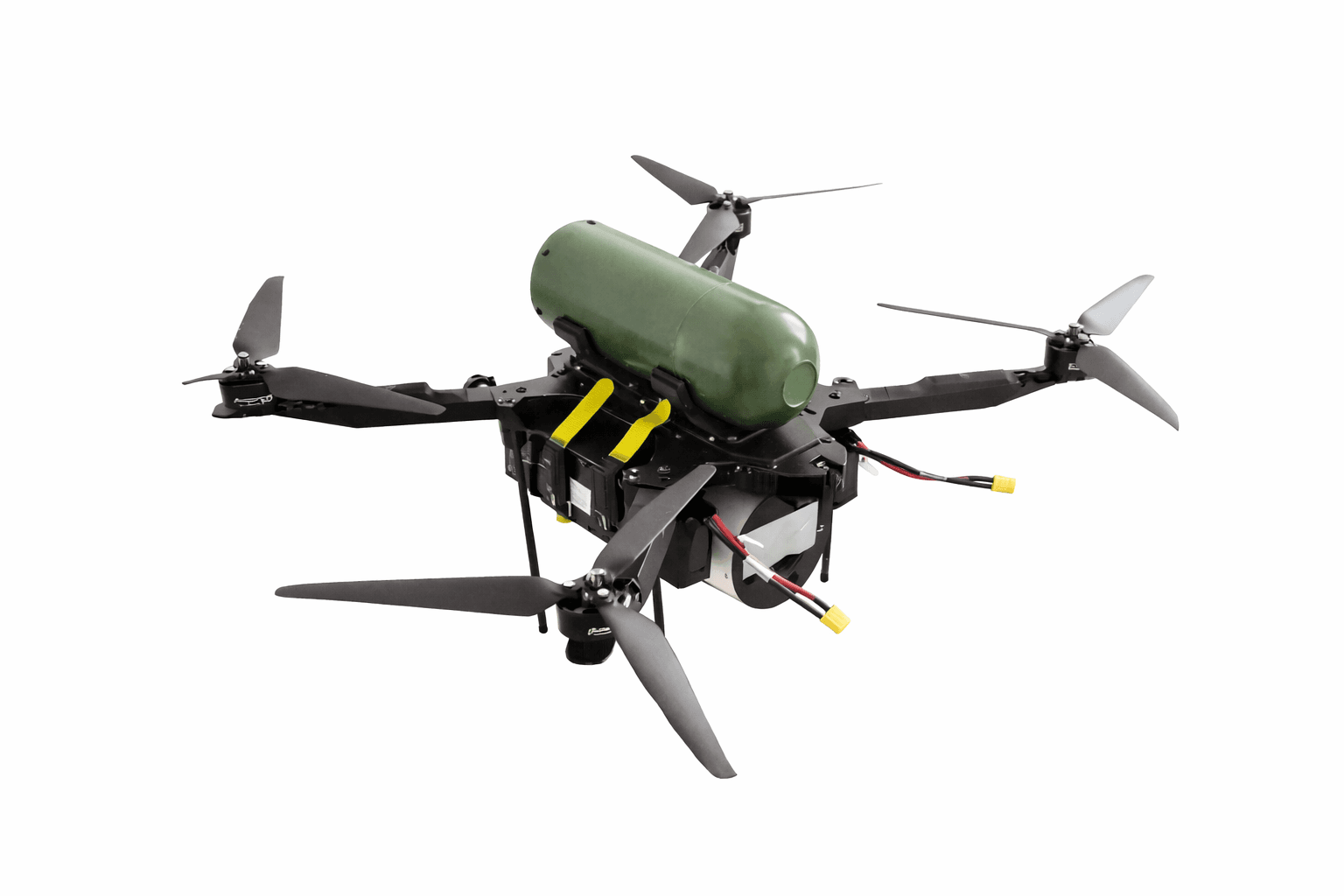

Lancer-X15 Optic

Lancer-X15 Optic

Large single-use strike UAV with 15-inch propellers and optical guidance. Maximum payload capacity in the TESAK series with extended operational range.

Single-useOptical GuidanceExtended Range

Technical Specifications

Size15 inches
Frame materialCarbon / Aluminum
Payload capacity3.2 kg
Tactical radius20 km
Flight time (no payload)24 min
Flight time (with payload)20 min
Speed (no payload)55 km/h
Speed (with payload)60 km/h
UAVs per kit50
Deployment time10 min

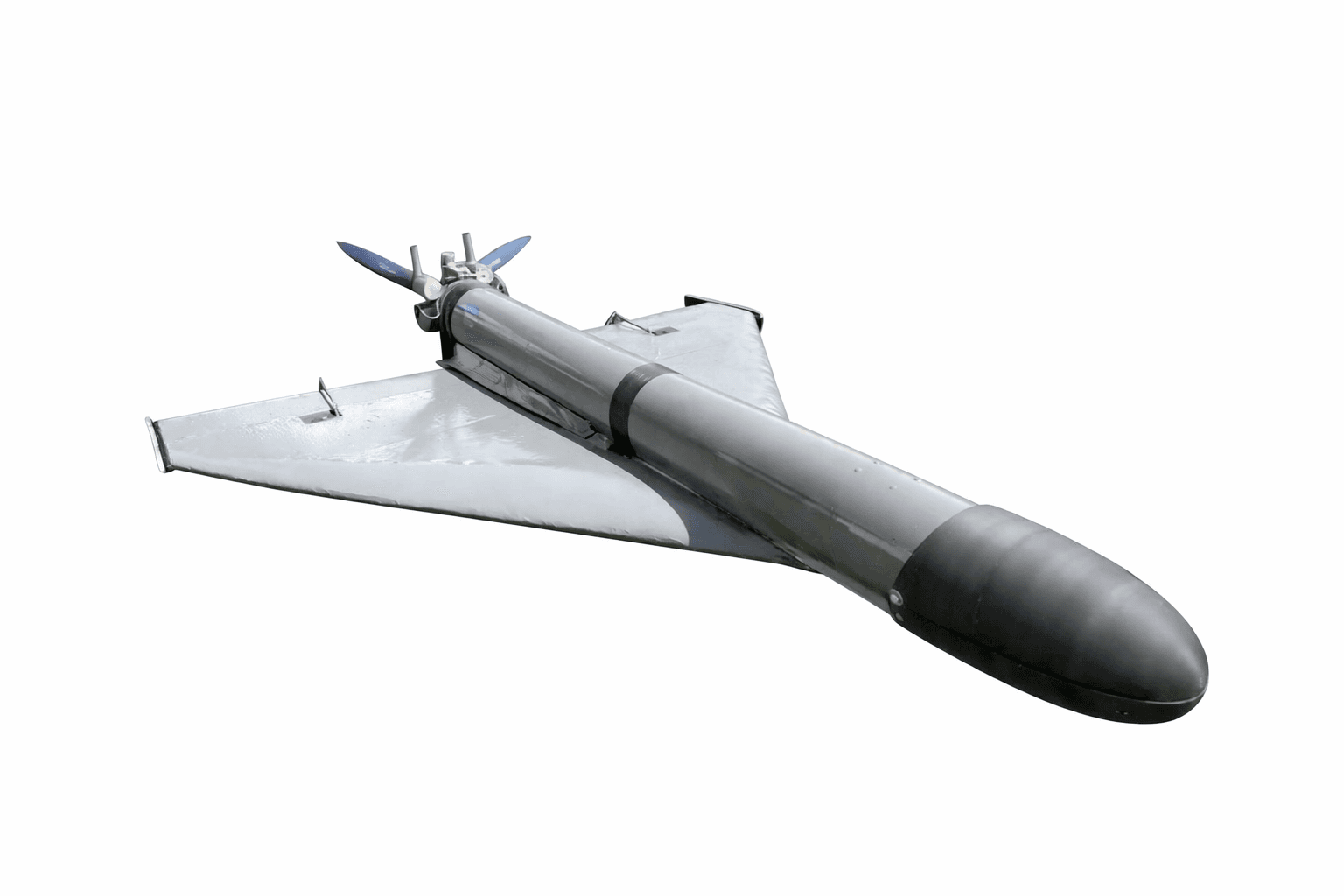

Longbow-X

Longbow-X

Long-range single-use strike UAV with exceptional tactical radius of 500-600 km. Fixed-wing design for extended flight duration and high payload capacity.

Single-useLong RangeHigh PayloadFixed Wing

Technical Specifications

SizeCustom
Frame materialCarbon / Aluminum
Payload capacity20 kg
Tactical radius500-600 km
Flight time4 hours
Speed160 km/h
UAVs per kit1
Deployment time15 min

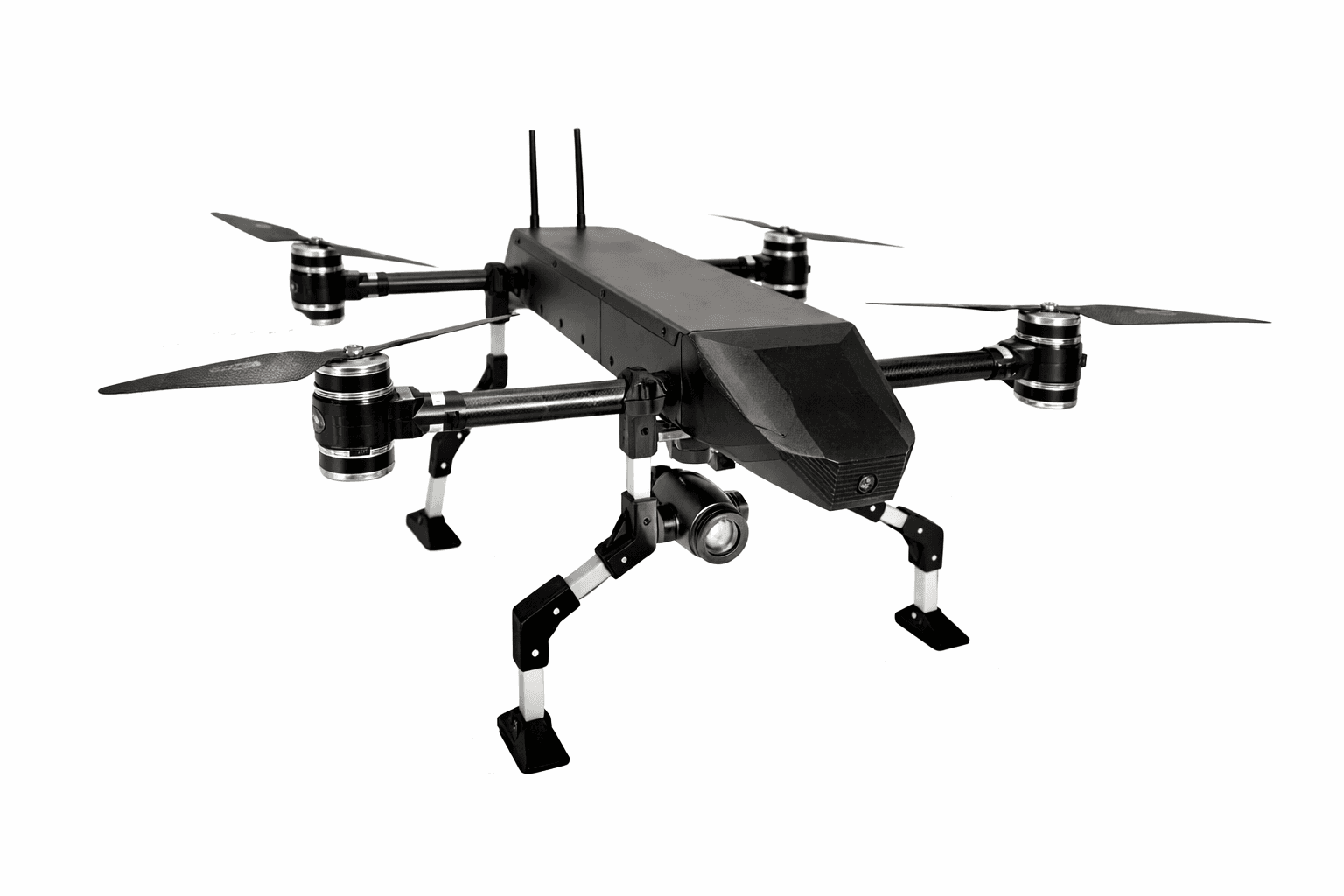

Titan-X

Titan-X

Multi-functional platform for reconnaissance, relay, bombing and cargo delivery. Versatile solution for various tactical missions with high payload capacity.

Multi-purposeReconnaissanceRelayBombingCargo Delivery

Technical Specifications

SizeCustom
Frame materialCombined
Payload capacity10-12 kg
Tactical radius20 km
Flight time (no payload)90 min
Flight time (with payload)40 min
Speed (no payload)100 km/h
Speed (with payload)70 km/h
UAVs per kit1
Deployment time15 min

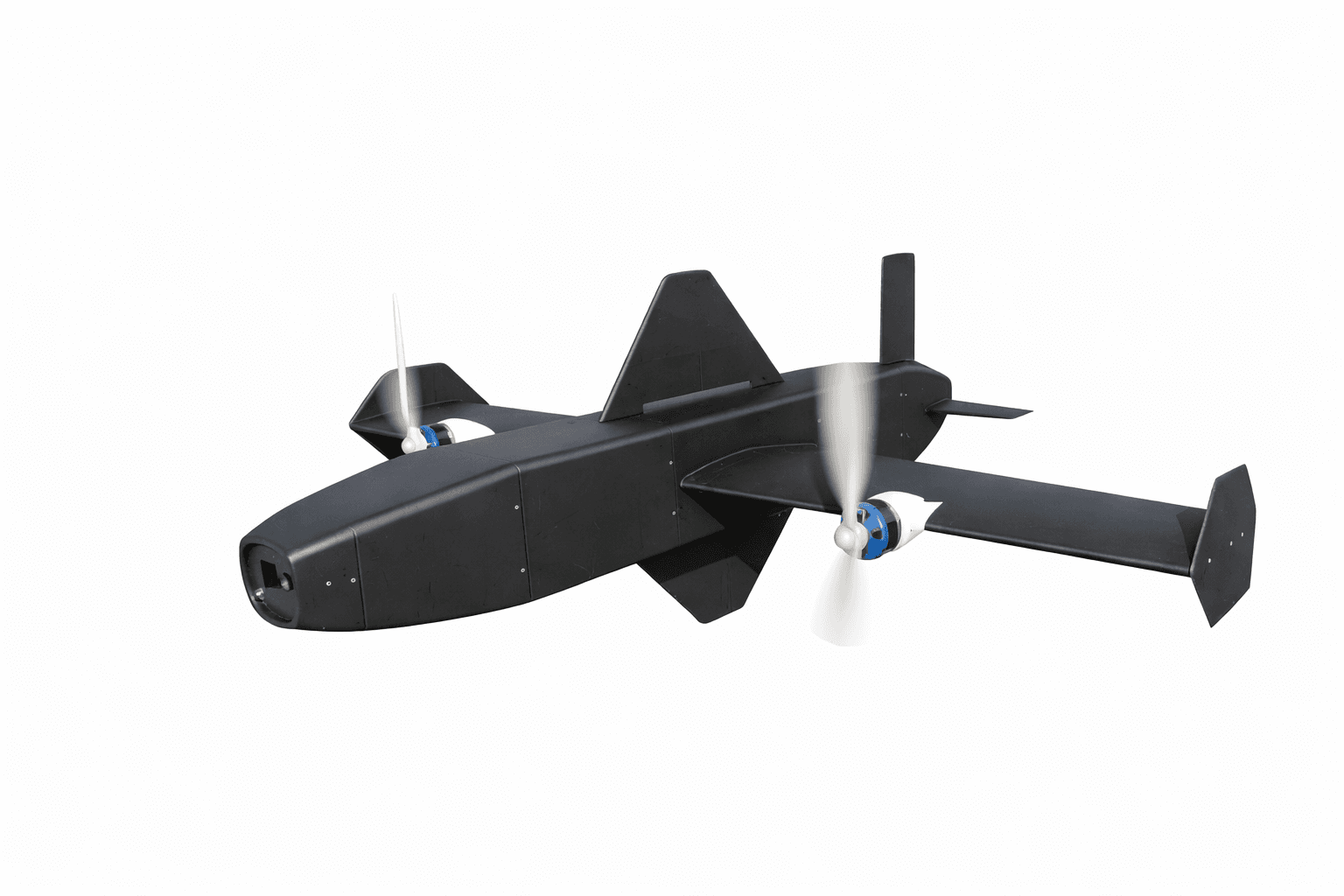

Warden-XLM

Warden-XLM

Next-generation loitering munition designed for effective engagement of small aerial and ground targets. Compact and maneuverable platform provides extended patrol time and rapid response to detected threats. Integrates with existing surveillance and control systems.

Extended PatrolPrecision StrikeHigh ManeuverabilityAir/Ground Targets

Technical Specifications

Wingspan1025 mm
Fuselage length980 mm
Height370 mm
Takeoff weight7500 g
Payload capacityup to 1500 g
Cruise speed240 km/h
Max speed370 km/h
Climb rate6 m/s
Flight timeup to 30 min
Operating altitude4000 m
Max altitude5000 m
Wind resistanceup to 25 m/s
Tactical radiusup to 10 km

Need a Custom Configuration?

Our team can help you select the optimal strike UAV configuration for your specific operational requirements.
